Stainless Steel Square Plansifter Machine 8-22t/H For Aquafeed

Name: Stainless Steel Square Plansifter Machine 822tH For Aquafeed
Brand: Serworld
Price: 10 USD

Wholesale Stainless Steel Square Plansifter Machine 8-22t/H For Aquafeed from china suppliers

Brand Name : Serworld

Model Number : SWSP001

Certification : CE/ISO

Place of Origin : China

MOQ : 1 SET

Payment Terms : LC/TT

Supply Ability : 10 sets can be produced in 45 days

Delivery Time : 45-60days

Packaging Details : Wooden Pallet

Price : USD10,000-100,000

Power(kw) : 2.2,3.0

Capacity(t/h) : 8-22

Mesh Size (μm) : 40-45,60-70

Weight (kg) : 1500kg,2300kg

Dimensions (mm) : 2540 × 1890 × 2100,2860 × 2450 × 2540

Application : Grain Cleaning

Power : 3.7kW

Material : Stainless Steel

Capacity : 1000kg/h

Frequency : 50Hz

Air Volume : 2000m3/h

Model : SC-100

Voltage : 380V

Screen Layers : 3

Cleaning Efficiency : 99%

Contact Now

Square Plansifter (Aquafeed Specialized)

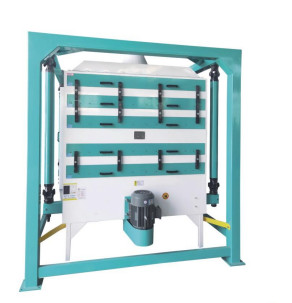

Stainless Steel Square Plansifter Machine 8-22t/H For Aquafeed

The AHCTS series square plansifter is a new-generation sieving equipment independently developed and designed to meet the specific needs of the aquafeed industry. It is mainly used for post-granulation sieving and regrading of pellet feed. Compared with traditional rotary sifters, this machine features higher efficiency and greater screening accuracy.

It is widely used in the processing of aquatic, livestock, poultry, and pet feeds, as well as in industries such as food, chemicals, and pharmaceuticals. It is especially suitable for screening and grading pellet and crumbled feed in aquafeed production lines.

Performance Features:

- Compact structure with high screening efficiency and small floor space.
- Uses wear-resistant sieve frames and fast-locking mechanisms for quick screen change.
- Designed with a closed, dust-free system for hygiene and safety.
- Independent vibration motor drive provides stable operation and low maintenance.
- Supports multiple feed inlet configurations for various layout requirements.
- Convenient installation due to small and modular size, especially for limited-space workshops.
- Strong rigidity and structural integrity; stable and durable.
- Compared to traditional rotary sifters, the screening yield can increase by over 30%.

Technical parameter :

Model	Capacity (T/h)	Power (kW)	Mesh Size (μm)	Weight (kg)	Dimensions (mm)
AHCTS125x190	8–12	2.2	40–45	1500	2540 × 1890 × 2100
AHCTS160x220	12–22	3.0	60–70	2300	2860 × 2450 × 2540
